Unified Namespace for IIoT: Architecture and Operational Considerations

For most industrial organizations, Operational Technology (OT) data lives in dozens of disconnected silos:

• Legacy PLCs trapped behind proprietary serial protocols.
• SCADA systems tightly coupled to specific HMIs.
• Historian databases that require a PhD in SQL to query.
• Ad-hoc, brittle integrations patched directly into ERP/MES platforms.

The result is a fragile spaghetti architecture. In this environment, every new integration project makes the system exponentially harder to reason about, maintain, and scale. Industry analysts estimate that manufacturers spend 40-60% of their IIoT project budgets just mapping and piping data, rather than solving actual engineering problems.

Proxus approaches this fundamental problem differently: by placing a Unified Namespace (UNS) at the absolute center of the architecture.

Observed performance depends on workload shape, node capacity, and deployment design.

What is a Unified Namespace?

A Unified Namespace is not a piece of software you buy; it is an architectural design pattern. It dictates that all operational data flows through a single, well-structured central broker.

In a UNS architecture:

• Every data point has a predictable, semantic location (the MQTT topic path).
• Naming is rigidly consistent across the entire enterprise, usually inspired by ISA-95.
• All consuming systems see the exact same view of the factory without requiring custom data mappings.

Instead of building N × M point-to-point connections (where adding one new software system requires connecting it individually to 30 existing machines), each component acts independently:

• It Publishes what it produces to the UNS.
• It Subscribes only to the payload branches it needs from the UNS.

This topology breaks down data silos, significantly reduces integration friction, and creates an environment where adding a new predictive maintenance algorithm or an ERP bridge is much simpler.

Why MQTT?

MQTT (Message Queuing Telemetry Transport) is the commonly preferred transport protocol for UNS implementations because it inherently:

• Minimizes bandwidth: Devices publish only when data changes (Report-by-Exception), not by continuously polling static values.
• Ensures reliability: Persistent Quality of Service (QoS) queues help prevent data loss during network blips.
• Scales effortlessly: A modern broker easily handles millions of topics and hundreds of thousands of concurrent subscribers over a single open port.
• Enforces security: It operates on outbound connections with built-in TLS encryption and strict Access Control Lists (ACLs).

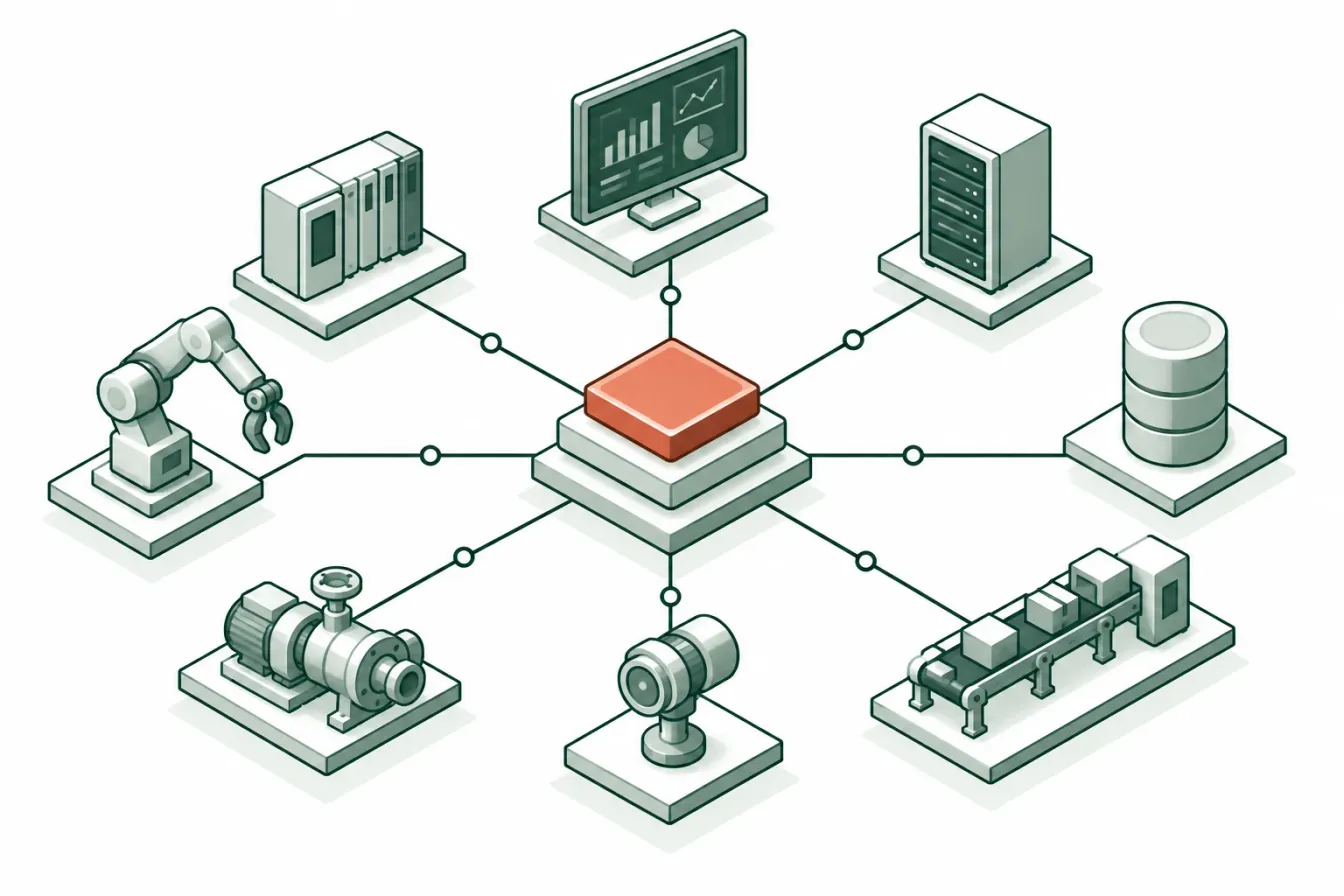

Think of the MQTT broker as the central nervous system of your factory. Sensors, machines, and applications connect to it, not to each other.

The ISA-95 Hierarchy: Standardized Data Organization

Proxus implements UNS natively using the ISA-95 Part 2 hierarchy, which organizes production data into an intuitive five-level pyramid:

Enterprise (e.g., "Proxus_Global")
 └─ Site (e.g., "Istanbul_Factory")
 └─ Area (e.g., "Assembly_Line_1")
 └─ Equipment (e.g., "Robot_Arm_04")
 └─ Metrics (e.g., "Temperature", "Status", "OEE")

This structure ensures that:

1. Humans can navigate the data tree intuitively without constantly referring to variable mapping spreadsheets.
2. Wildcard subscriptions work instantly: Subscribe to Istanbul_Factory/Assembly_Line_1/+/+/OEE to retrieve OEE data from every piece of equipment on that line, including machines installed 5 years from now.
3. Context is preserved: The topic path itself exposes where the data originated. An anonymous value 72 means nothing; Istanbul/Line1/Oven/metrics/Temperature = 72 means everything.
4. Legacy systems adapt: A 25-year-old serial PLC is simply wrapped by a gateway and becomes just another standard "Equipment" node.

A Concrete Example

In a beverage bottling plant, your topics look like this:

ProxusMfg/Istanbul/Bottling/Line3/FillerMachine/metrics/Temperature
ProxusMfg/Istanbul/Bottling/Line3/FillerMachine/state/Running
ProxusMfg/Istanbul/Bottling/Line3/FillerMachine/events/MaintenanceAlert

Sparkplug B: Standardizing Payloads

While MQTT provides the network transport, Sparkplug B is an eclipse specification that standardizes the format of the messages published to MQTT.

It solves a critical "Tower of Babel" problem: without Sparkplug B, one device might publish {"temp": 24} as JSON, while another publishes 24.0 as raw bytes.

Sparkplug B enforces rigid rules:

Birth & Death Certificates

• When an edge device powers on, it publishes a BIRTH message containing its entire schema: all available metrics, data types, and properties.
• If the device loses network or loses power, the MQTT broker automatically intercepts the disconnection and publishes a DEATH message.
• This instantly alerts all subscribers, preventing ghost devices from polluting your dashboards with stale, hours-old data.

Type Safety & Compression

• Sparkplug B mandates the use of Protocol Buffers (Google's binary serialization format) instead of text-heavy JSON.
• It reduces payload size by up to 70%, which is critical for bandwidth-starved remote sites.
• It enforces schema validation (ensuring a temperature value arrives as a Float, not a String).

Proxus natively supports standard JSON MQTT alongside raw Sparkplug B, allowing you to seamlessly mix legacy polling with modern, event-driven architectures.

How Proxus Executes the UNS

Proxus is built from the ground up to serve as the heart of a UNS. Unlike bolting an open-source MQTT broker onto legacy SCADA, Proxus uses a highly-concurrent actor-based architecture:

This architecture ensures ultra-low latency for critical alerts, high availability during WAN drops via local edge buffering, and linear scaling.

Real-World Example: Fixing the Spaghetti

Let's look at ProxusMfg's Istanbul bottling facility. They needed to monitor three distinct lines in real-time and correlate line-wide OEE.

Before UNS (The Chaos)

• Siemens S7-1200 PLCs on each line talked to isolated local HMIs over Profinet.
• The MES system polled each PLC directly every 10 seconds via a custom driver.
• The ERP (SAP) ran a batch job every 15 minutes to pull the MES database.
• BI dashboards queried a heavily delayed SAP data warehouse.
• The Bottleneck: Adding a new predictive-maintenance AI tool required 4 weeks of custom software integration and massive network firewall modifications.

After UNS with Proxus

• Three Proxus Edge Gateways wrap the S7 PLCs. They publish normalized data directly to the central Proxus MQTT engine.
• The MES drops its custom polling driver and simply subscribes to ProxusMfg/Istanbul/Bottling/+/+/metrics/OEE.
• The ERP publishes real-time production orders to ProxusMfg/Istanbul/Bottling/+/commands/ProductionOrder.
• The specific Predictive AI Tool subscribes only to vibration and current topics, analyzes them, and publishes anomalies right back to ProxusMfg/.../events/Anomaly.

Result: Adding the new AI consumer took 2 hours of configuration, zero custom code, and zero downtime.

Ready to Break Free?

The Unified Namespace is more than a trendy data architecture - it is a fundamental shift in how factories operate. It transforms operational data from a locked-down, proprietary commodity into a highly liquid, shared asset that accelerates engineering innovation.

Building a UNS does not require deep MQTT expertise, 10,000 lines of custom code, or years of consulting. Proxus handles the raw complexity: from physical device connectivity and payload standardization to edge buffering and data-lake persistence.

When this may not be suitable

• Lower-frequency telemetry may not justify full distributed complexity.
• Small single-line plants may prefer simpler architectures first.
• Strict legacy constraints may require phased adoption.
• Safety-critical closed-loop control should remain in PLC/Safety PLC layers.

Outcomes depend on workload profile, hardware capacity, and deployment topology.

Frequently Asked Questions

What is the difference between this article and the UNS Architecture Guide?

This article explains the concept of UNS - why it exists, how it differs from the Automation Pyramid, and what business value it delivers. The Architect's Guide to UNS is the implementation blueprint - MQTT topology, ISA-95 namespace design, Sparkplug B payloads, and a 5-phase rollout roadmap.

Can UNS work with OPC UA?

Yes. UNS does not replace OPC UA - it complements it. OPC UA excels at local machine-to-machine reads; MQTT excels at scalable pub/sub distribution. Edge Gateways read via OPC UA and publish to the UNS via MQTT.

How do I handle data quality in a UNS?

Use Smart Filtering at the edge to eliminate noise before data enters the UNS, and enforce strict topic naming governance. The OT DataOps pipeline ensures data is clean, contextualized, and semantically consistent across all consumers.

References

1. ISA-95 (IEC 62264) - Enterprise-control integration standard defining the hierarchical model adapted for UNS topic design. ISA-95
2. MQTT v5.0 OASIS Standard - Publish-subscribe protocol serving as the UNS transport layer. mqtt.org
3. Eclipse Sparkplug Specification - Payload standardization for MQTT-based IIoT interoperability. sparkplug.eclipse.org

Learn how to implement these patterns physically by exploring our Edge Computing Patterns or dive into the technical details in the Core Concepts Guide.
